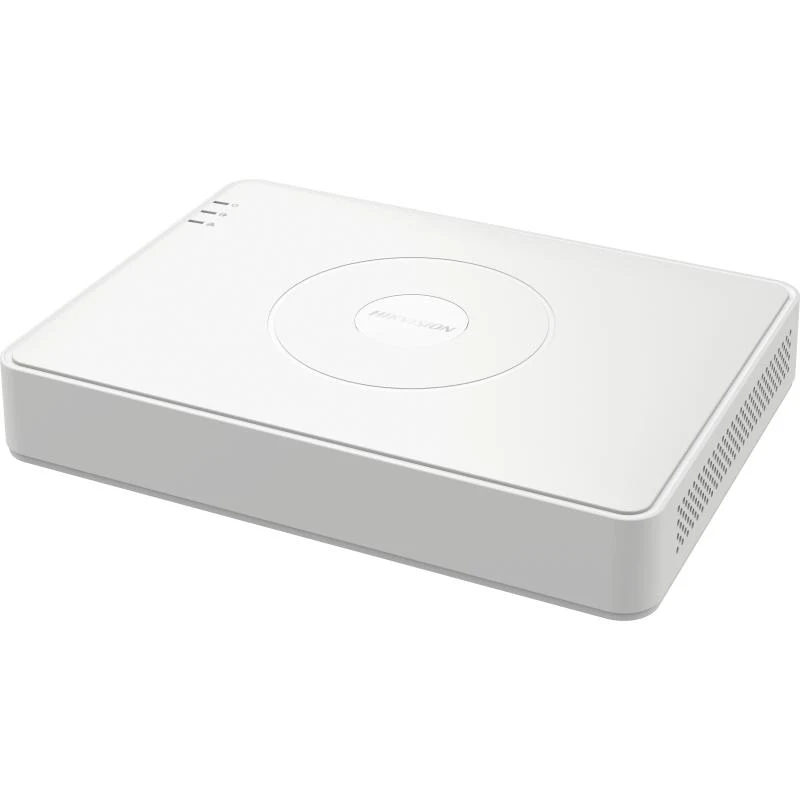

Hikvision iDS-7116HQHI-M1/T 16 Channel 5MP AcuSense H.265 DVR
₨ 34,000
- 16-channel AcuSense DVR with H.265 Pro+ video compression
- Records up to 5 MP Lite and 3K Lite; supports 5 MP and 3K HD cameras
- Motion Detection 2.0 and perimeter protection — human and vehicle classification
- 4K HDMI output and gigabit Ethernet; Enhanced IP mode up to 24 channels
- 1 SATA up to 10 TB; facial detection and capture
| Model | iDS-7116HQHI-M1/T |
|---|---|
| Video Input | 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| IP Camera Input | 2-ch (up to 18-ch); Enhanced IP mode: 8-ch (up to 24-ch), up to 6 MP resolution |
| Supported Camera Types | HDTVI: 3K @ 25/20 fps, 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; AHD: 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; HDCVI: 3K @ 25/20 fps, 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; CVBS: PAL/NTSC |
| Recording Resolution | 3K Lite/5 MP Lite @ 12 fps; 4 MP Lite/1080p @ 15 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Bitrate | 32 Kbps to 6 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Compression | G.711u, 64 Kbps |
| Synchronous Playback | 16-ch |
| Smart Features | Motion Detection 2.0 (human/vehicle classification), perimeter protection (line crossing/intrusion, 4-ch), facial detection and capture |
| HDD Interface | 1 SATA interface |
| Max. HDD Capacity | Up to 10 TB capacity for each disk |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Total Bandwidth | 128 Mbps |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | ≤ 24 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
The Hikvision iDS-7116HQHI-M1/T 16 Channel 5MP AcuSense H.265 DVR is a 16-channel AcuSense recorder for warehouses, schools, plazas and large sites that need high-resolution coverage with smart alerts. It records sixteen Hikvision CCTV Cameras at up to 5 MP over standard coaxial cable and outputs the picture at up to 4K on HDMI.
AcuSense Smart Detection — Fewer False Alarms
Motion Detection 2.0 classifies human and vehicle targets on all analogue channels, deep-learning perimeter protection covers line crossing and intrusion on four channels, and facial detection and capture with face picture search secures entrances and reception areas.
5 MP and 3K Recording over Coax
Sixteen BNC inputs accept HDTVI cameras up to 3K and 5 MP, plus AHD and HDCVI up to 5 MP and CVBS. Recording runs at 5 MP Lite and 3K Lite at 12 fps and 4 MP Lite and 1080p at 15 fps, with 16-channel synchronous playback keeping every view on one timeline.
4K HDMI Output and Gigabit Networking
The HDMI output reaches 4K (3840 × 2160) for a main control-room screen, with VGA running simultaneously at 1080p. A gigabit Ethernet port and 128 Mbps total bandwidth keep remote viewing smooth for up to 128 connections via Hik-Connect.
H.265 Pro+ Compression, Up to 10 TB Storage
H.265 Pro+ encoding keeps sixteen channels of high-resolution footage compact at bitrates up to 6 Mbps per channel with dual-stream support. The single SATA bay supports drives up to 10 TB — the most storage in this class. Enhanced IP mode expands the system to 24 channels with IP cameras up to 6 MP, and audio runs over the coax from compatible cameras.
Hikvision iDS-7116HQHI-M1/T 16 Channel 5MP AcuSense H.265 DVR: Full-Size Capacity in a Mini 1U Body
The 285 × 210 × 48 mm mini 1U chassis fits standard racks and cabinets. Two rear USB ports handle backup, mouse and even a Wi-Fi dongle, and the DVR runs on a 12 VDC supply drawing at most 24 W without a hard drive, working from -10 °C to 55 °C.
Buy the original Hikvision iDS-7116HQHI-M1/T 16 Channel 5MP AcuSense H.265 DVR in Pakistan from Noon Technologies with a 1-year warranty and nationwide delivery. Explore more Hikvision DVR models to scale your system.
| Model | iDS-7116HQHI-M1/T |
|---|---|
| Video Input | 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| IP Camera Input | 2-ch (up to 18-ch); Enhanced IP mode: 8-ch (up to 24-ch), up to 6 MP resolution |
| Supported Camera Types | HDTVI: 3K @ 25/20 fps, 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; AHD: 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; HDCVI: 3K @ 25/20 fps, 5 MP @ 20 fps, 4 MP @ 30/25 fps, 1080p, 720p; CVBS: PAL/NTSC |
| Recording Resolution | 3K Lite/5 MP Lite @ 12 fps; 4 MP Lite/1080p @ 15 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Bitrate | 32 Kbps to 6 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Compression | G.711u, 64 Kbps |
| Synchronous Playback | 16-ch |
| Smart Features | Motion Detection 2.0 (human/vehicle classification), perimeter protection (line crossing/intrusion, 4-ch), facial detection and capture |
| HDD Interface | 1 SATA interface |
| Max. HDD Capacity | Up to 10 TB capacity for each disk |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Total Bandwidth | 128 Mbps |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | ≤ 24 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
